ID: 54140
Omschrijving

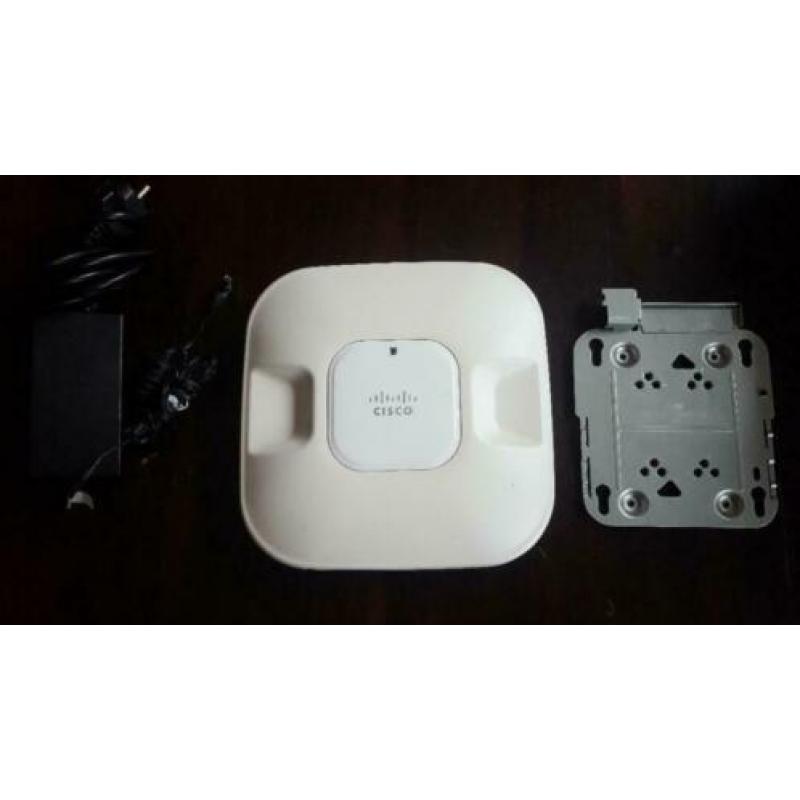

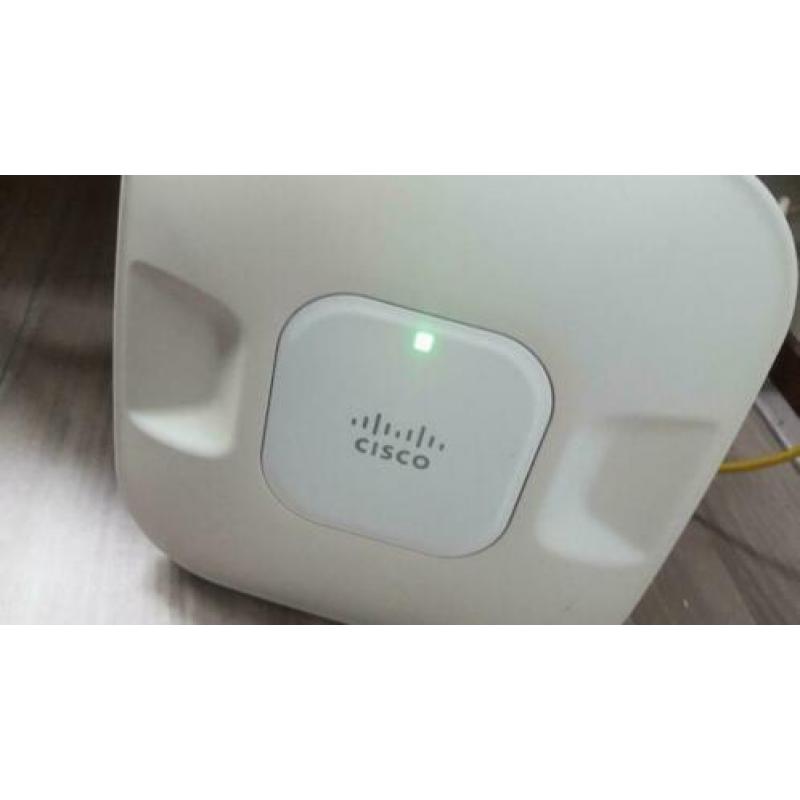

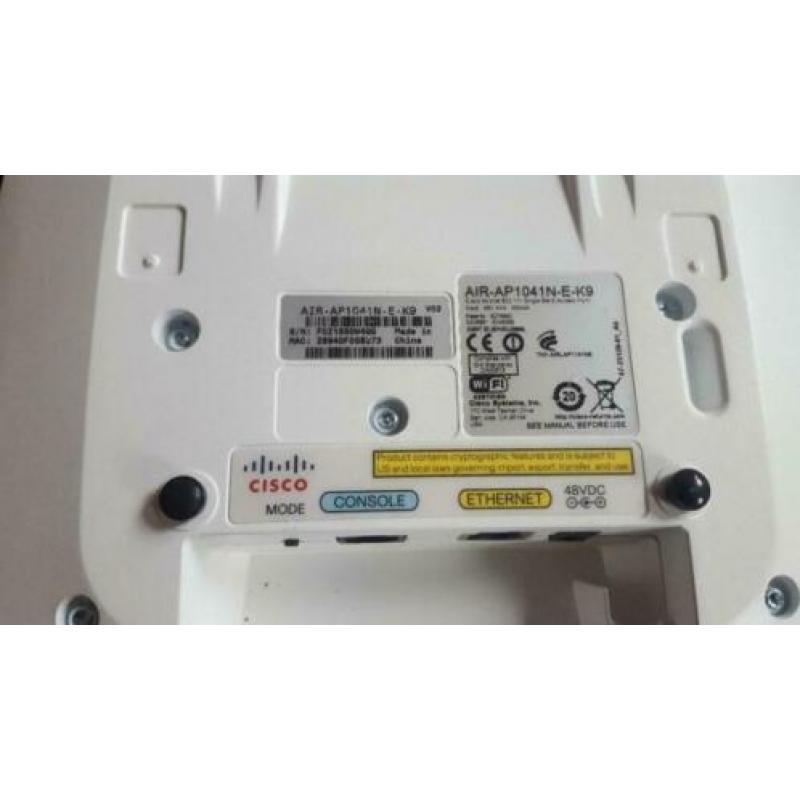

te koop weinig gebruikte cico air-ap1041n-e-k9

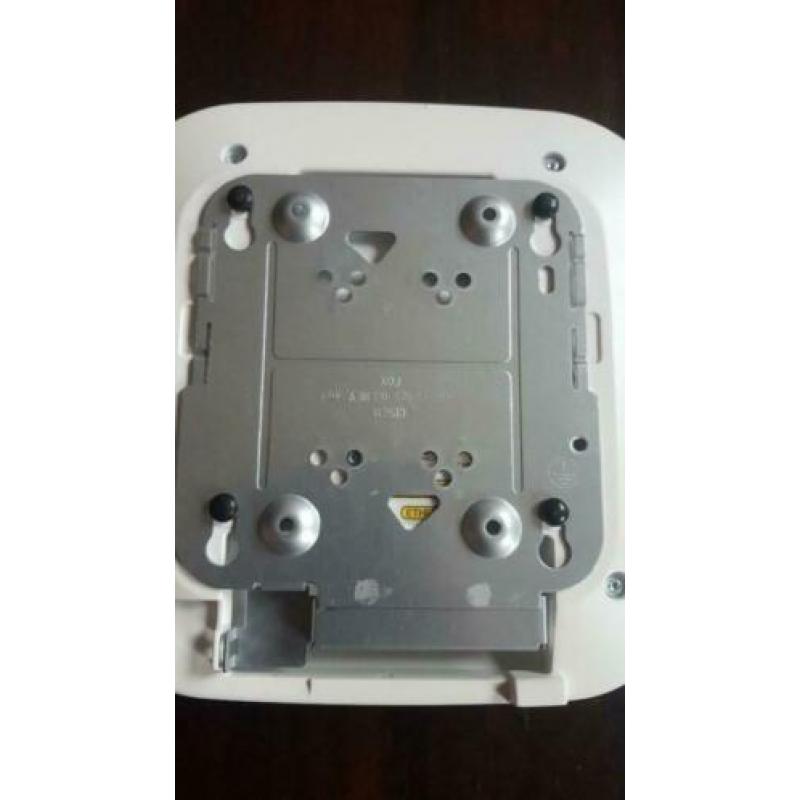

incl adapter en muureugel
specificaties zijn
Data Rates Supported
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates 300 Mbps
802.11n Capabilities
Maximal ratio combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS) (Bin 5)
Cyclic shift diversity (CSD) support
Integrated Antenna
2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360°
Interfaces
10/100/1000BASE-T autosensing (RJ-45)
Management console port (RJ45)
Indicators
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)
Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)
System Memory
128 MB DRAM
32 MB flash
Safety
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
Radio approvals
FCC Part 15.247, 15.407
EN 300.328, EN 301.893 (Europe)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
IEEE Standard
IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d
Security
802.11i, Wi-Fi Protected Access 2 (WPA2), WPA 802.1X
Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
EAP Type(s)
Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
PEAPv1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
Multimedia
Wi-Fi Multimedia (WMM)
