ASRock Z97 Pro4 | 4x DDR3 | ATX | LGA 1150 | Laatste BIOS Ve

---

Specificaties: Moederbord – Socket LGA1150 – ATX – Intel Z97 Chipset – 4 x DDR3 up to 32GB – Gigabit Ethernet – DVI-D – HDMI – VGA – USB3.0 –  SATA III – M.2 (S600/Pcie2.0x2) – SATA Express (Gen2, 10Gb/s) – 6x SATA-600 – 2x PCI – PCI-e 2.0 x1 – PCI-e 2.0 x16 – PCI-e 3.0 x16

Dit socket 1150 ATX moederbord is gecontroleerd en voorzien van de laatste BIOS versie.
De prijs is inclusief garantie, een BTW Factuur is ook mogelijk, de prijs is dan inclusief BTW.

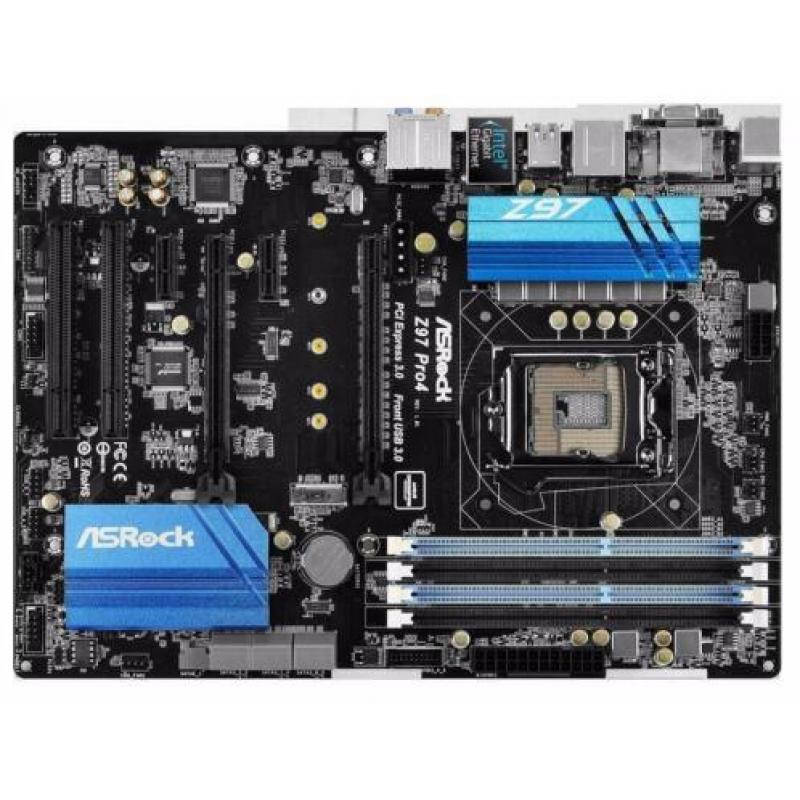

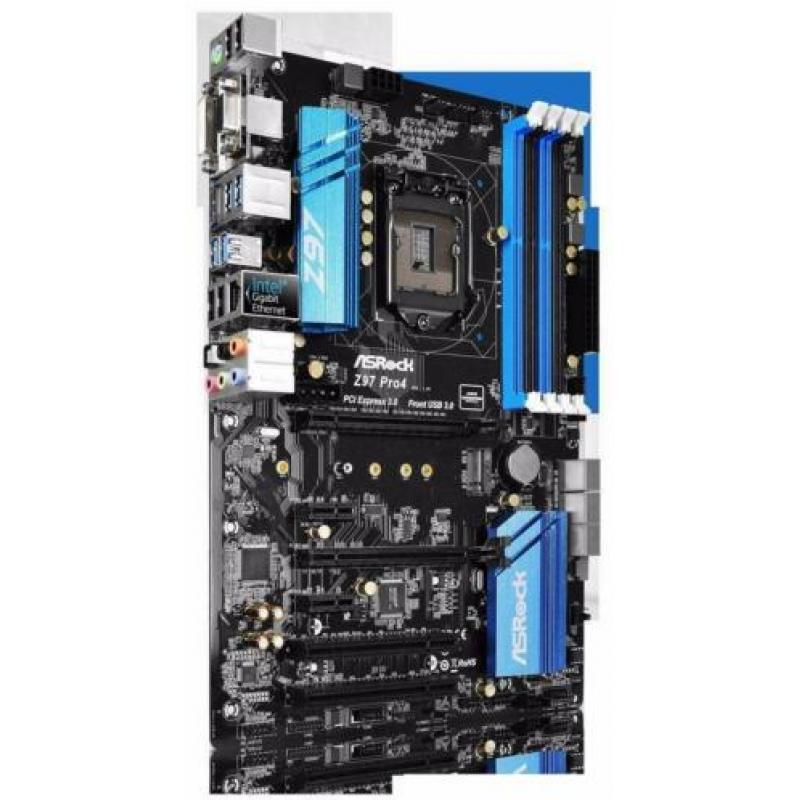

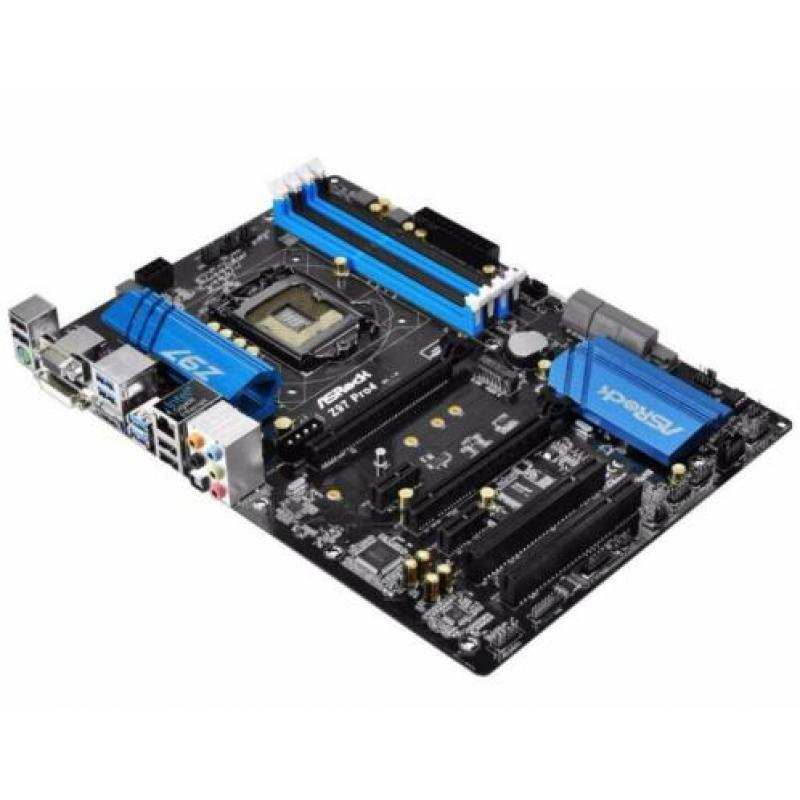

Product: ASRock Z97 Pro4
Categorie: Moederborden
Merk: ASRock
EAN: 4717677323528
SKU: 90-MXGTS0-A0UAYZ, Z97 Pro4

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

ASRock Super Alloy
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– NexFET™ MOSFET
– Sapphire Black PCB
Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Solid Capacitor design, Digi Power
Supports Dual Channel DDR3/DDR3L 3100+(OC)
1 PCIe 3.0 x16, 3 PCIe 2.0 x1, 2 PCI

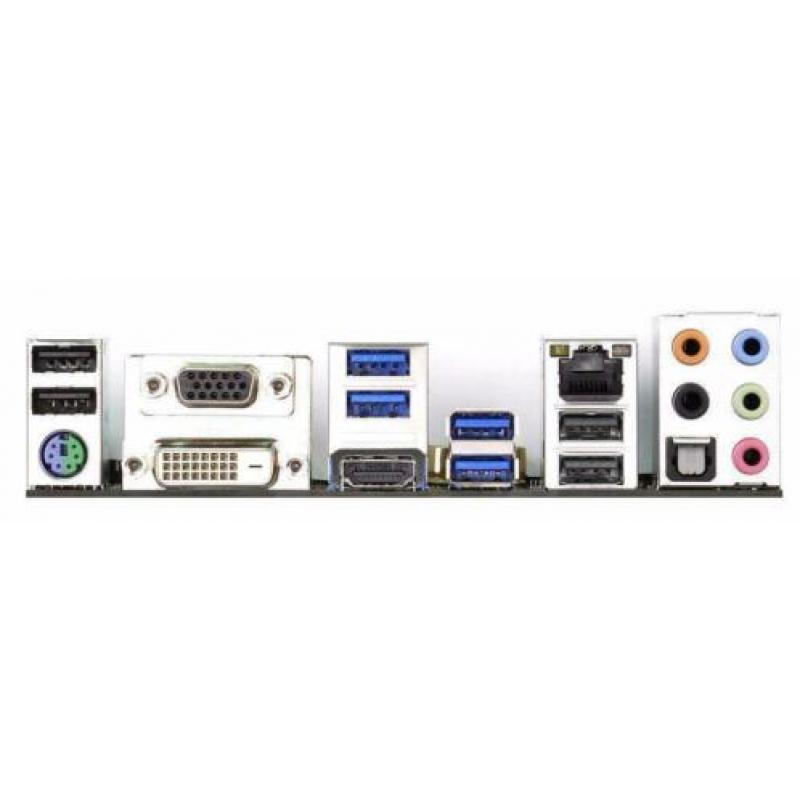

Graphics Output Options: D-Sub, DVI-D, HDMI
Supports Triple Monitor
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
Intel® Gigabit LAN
6 SATA3, 6 USB 3.1 Gen1 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
1 COM Port Header
Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
Unique Feature
ASRock Super Alloy
– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– NexFET™ MOSFET
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop

CPU
– Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z97

Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 4 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2


Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600...
