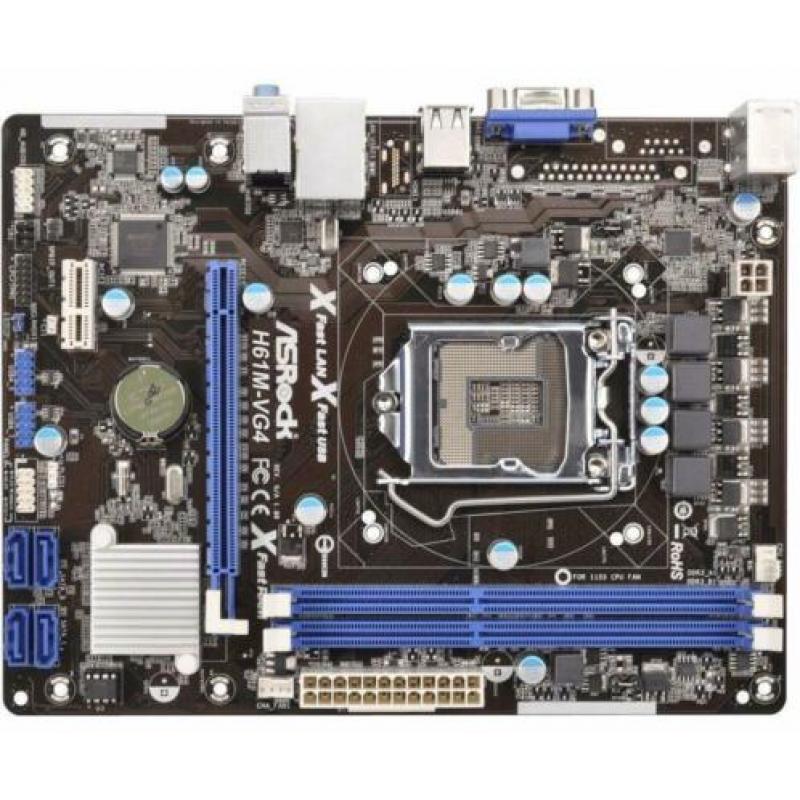

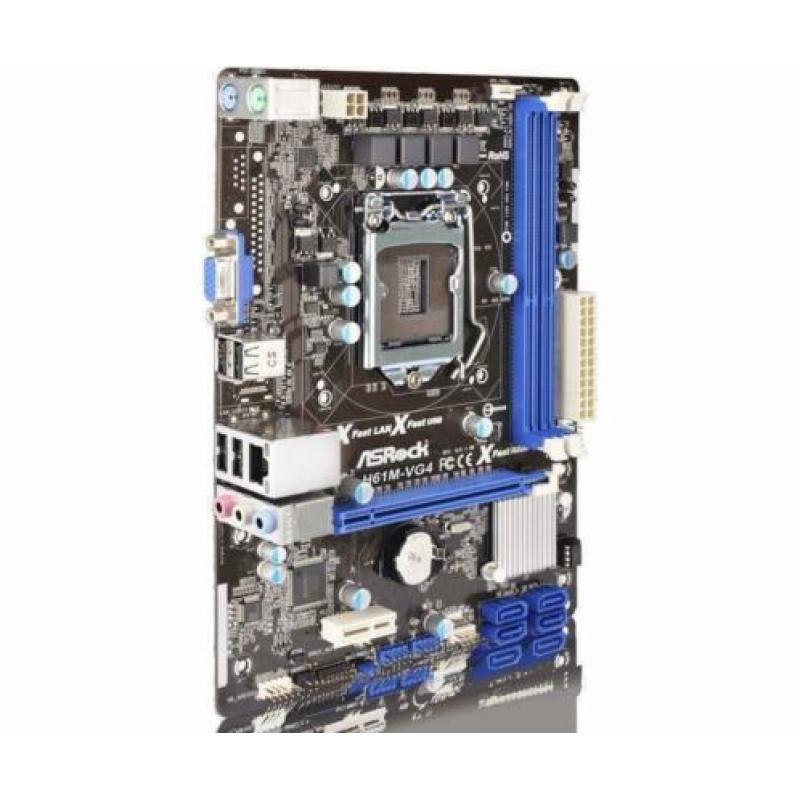

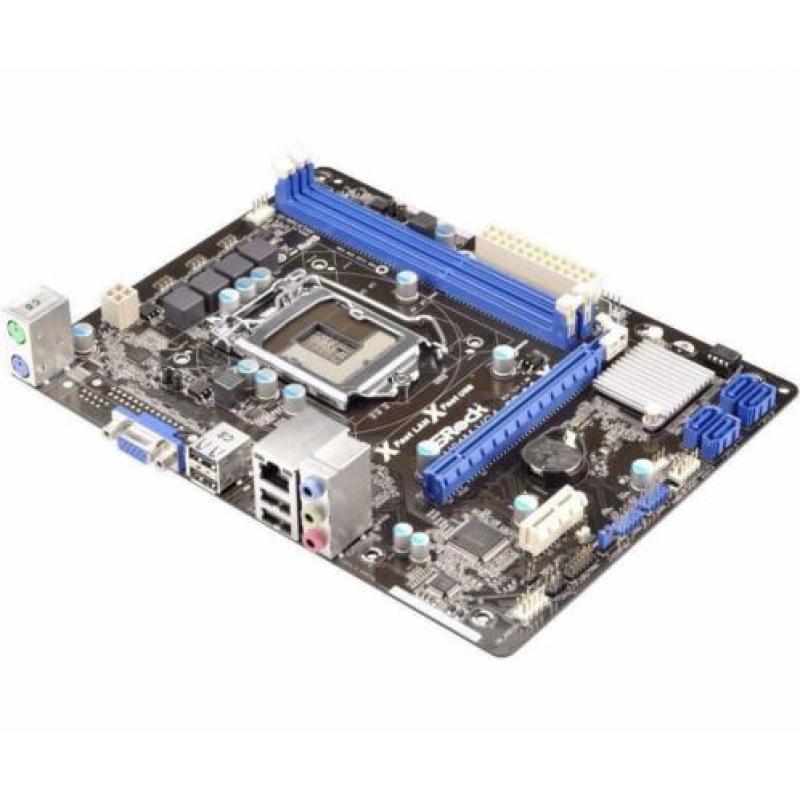

ASRock H61M-VG4 | LGA 1155 | 2x DDR3 | M-atx | Laatste BIOS

---

Specificaties: Moederbord – Socket LGA1155 – M-ATX – Intel H61 Chipset – 2 x DDR3 up to 16GB – Gigabit Ethernet – VGA (D-Sub) – PCI-e 2.0 x1 – PCI-e 3.0 x16

Dit socket 1155 Micro-ATX moederbord is gecontroleerd en voorzien van de laatste BIOS versie.
De prijs is inclusief garantie, een BTW Factuur is ook mogelijk, de prijs is dan inclusief BTW.


Product: ASRock H61M-VG4
Categorie: Moederborden
Merk: ASRock
EAN: 4717677320978
SKU: 90-MXGQN0-A0UAYZ, H61M-VG4

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

100% All Solid Capacitor design
Supports Dual Channel DDR3 1600
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Supports Intel® HD Graphics with Built-in Visuals
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Supports ASRock XFast 555, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Internet Flash
Supports Intel® Smart Connect Technology, Intel® Rapid Start Technology
CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Hyper-Threading Technology

Chipset
– Intel® H61
– Supports Intel® Rapid Start Technology and Smart Connect Technology


Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU


Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.


In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
– Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
– Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
– Supports D-Sub with max. resolution up to 2048×1536 75Hz


Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
